Dish washer ㅣ Booster Series
Description

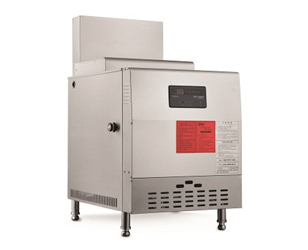

Booster Series
| Model | SJM-830G | SJM-850G | SJM-950G | |
|---|---|---|---|---|
| size W x D x Hmm |
475 x 590 x 780 | 565 x 590 x 780 | 550 x 700 x 780 | |
| power | 220V | |||
| service Power | 25W | |||
| ignition system | consecutively dead battery system | |||
| exhaust | supply fan and exhaust free | |||
| water pressure | air pressure | |||
| gas | LPG (kg/hr.) | 2.03 | 3.0 | 4.1 |
| LNG (kcal/hr.) | 24,400 | 36,000 | 50,000 | |
| gauge | water supply | 20A (PF¹/2”) | 20A (PF¹/2”) | 20A (PF¹/2”) |
| tapping | 25A (PF¹/2”) | 25A (PF¹/2”) | 25A (PF¹/2”) | |
| gas | 15A (R¹/2”) | 15A (R¹/2”) | 15A (R¹/2”) | |
| storage | 45L (valid 18L) | 48L (valid 20L) | 70L (valid 28L) | |
| weight | 28kg | 36kg | 40kg | |
Description
The SJM burner is a core component of the Booster series of SJM, realizing a complete combustion regardless of types of gases.
It pursues a maximized its thermal efficiency by transferring the heat that has been conducted from the gar burner.
Its safety is fully guaranteed since all products are tested lot by lot instead of a sample test, when released from the factory.
When any abnormalities occur, the abnormal parts/components are indicated on the display panel by the self-diagnostic function, providing much needed confidence at a higher level.
